Garrett | Vortex VX5 Metal Detector | LMS Metal Detecting

$449.99 Regular price $529.99

Garrett Military Discount Program - Learn More

Manufacturer SKU 1142860

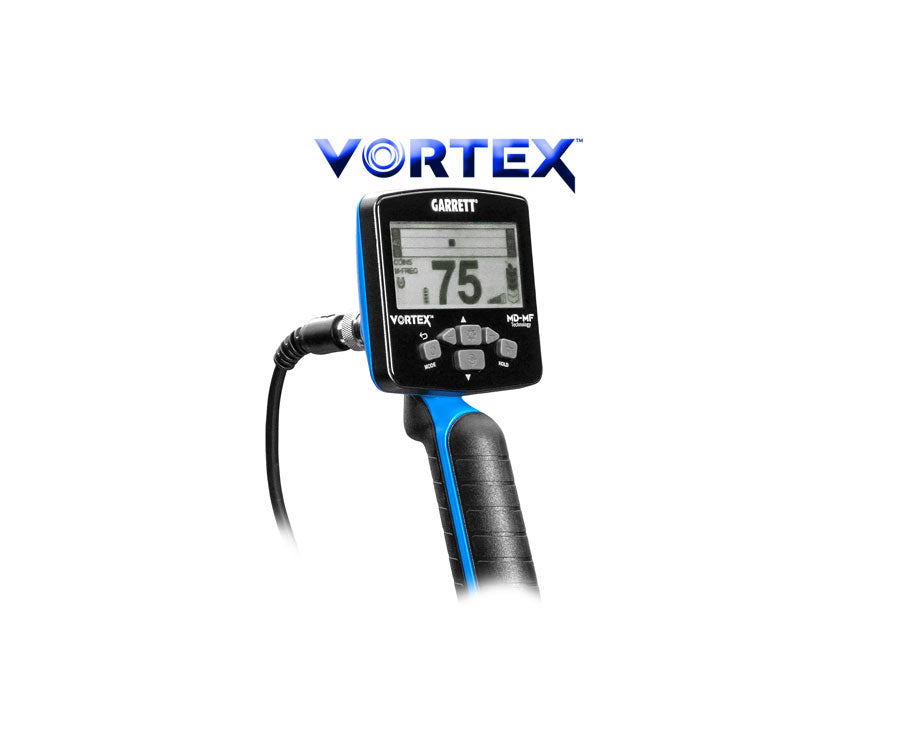

Garrett Vortex VX5 Metal Detector with 8.5" x 11'' Raider DD Search Coil

Garrett’s NEW Multi-Dimensional Multi-Frequency Technology, The Vortex VX5 model has a powerful Single-tier Target ID scale that indicates both ferrous and non-ferrous targets, with ferrous targets indicating toward the left, low conductivity in the middle, and high conductivity toward the right.

Product Highlights:

  • Excellent Detection Depth and Target ID accuracy
  • Target ID Scale Single-tier (0-99)
  • 3-Tone Audible Target ID
  • Search Coil: Raider DD 8.5" x 11"
  • Four Search Modes + Pinpoint
  • Construction: Waterproof up to 16 feet (5 meters)
  • Special Features: Multi-Dimensional Multi-Frequency Technology
  • Weight: 3 lbs. (1.38 kg)
  • Warranty: 3 Year Limited Warranty
Garrett Vortex
Garrett Z-Lynk | LMS Metal DetectingGarrett Multi-Dimenisional Multi-Frequency Technology

*Note: lower frequencies generally offer improved detection on larger and more conductive targets (i.e. large silver coins). Higher frequencies generally offer improved detection on smaller and less conductive targets (i.e., hammered silver coins, gold nuggets).

Garrett | LMS Metal Detecting

Garrett | Vortex VX5 Metal Detector | LMS Metal Detecting

$449.99 Regular price $529.99

Garrett Metal Detectors

Vortex VX5 Overview

The VX5 entry Vortex model is loaded with features and provides fast, fixed Recovery Speed on adjacent targets. Fully waterproof to 16 feet (5m). Single and Multi-Frequency option. Single-tier MD-MF Target ID scale. Three audio tones.

The world’s first fully upgradeable waterproof detector series! As your skills increase, you can opt to convert your VX-5 to a VX-7 or VX-9 model with software updates. Each Vortex model upgrade includes additional operating frequencies, more advanced features, and more power!

SINGLE TARGET ID SCALE
When operating in Multi-Frequency, the VX5’s Target ID system displays both ferrous and non-ferrous targets, with ferrous targets indicating toward the left, low conductivity in the middle, and high conductivity toward the right More target information . . . so you can make better dig decisions!

IRON VOLUME CONTROL WHAT YOU HEAR
Iron Volume allows you to decrease the volume of ferrous (iron) targets, while the volume of non-ferrous targets remains at normal level. Experienced treasure hunters often like hearing all targets, but will appreciate the option to decrease the volume of undesired items. Eight adjustment levels.

LIGHTWEIGHT AND COLLAPSIBLE
Compacts to 24.75" (62.86 cm) and extends to 56.75" (144.14 cm) Weight: 3 lbs. (1.38 kg) with coil cover installed.

TWO FREQUENCY OPTOINS: Choose from the powerful single frequency (13 kHz) or search with the Vortex simultaneous Multi-Frequency option.

Garrett Vortex Quick Start Guide and Comparison Chart

Garrett Vortex Manual

Garrett Vortex Metal Detector | LMS Metal Detecting

Features

  • Three Search Modes + Pinpoint: Zero, Standard, US Coins, Custom
  • MD-MF Target ID Scale: One Target Id Scale (0-99)
  • Iron Volume: allows you to decrease the volume of ferrous (iron) targets, while the volume of non-ferrous targets remains at normal level.
  • 3-Tone Audible Target ID
  • Fast Target Recovery Speed
  • Hi-Resolution Ground Balance: 175 points of ground balance resolution, ranging from ferrous ground to saltwater
  • Volume Control: For both the built-in speaker and headphones
  • Eight Sensitivity/Depth Adjustments
  • Iron Audio: Garrett's unique feature helps to correctly identify complex iron objects, such as bottlecaps and steel washers
  • Frequency Shift: Use to reduce noise or electrical interference (EMI)
  • Backlight: Illuminate your LCD screen to see target information at night
  • Coil: 8.5" x 11" DD Raider
  • Lightweight and Collapsible: Compacts to 24.75" (62.86 cm) and extends to 56.75" (144.14 cm). Weight: 3 lbs. (1.38 kg) with coil cover installed
  • Rechargeable Battery: Built-in lithium ion battery provides approximately 15 hours of search time per charge
  • Updateable / Upgradeable
Factory Included Items
  • Garrett Vortex VX5 metal detector
  • 8.5" x 11" DD Raider Submersible Searchcoil with Cover
  • USB Charging Cord
  • Access to Online Training Videos
  • Quick Start Guide - Full User Manual Available Online Only
  • 3 Year Warranty
Garrett Metal Detectors | LMS Metal Detecting

Specifications

Manufacturer: Garrett
Manufacturer SKU: 1142860
Product Type: Metal Detectors
Best for, Coin, Relic, Beginner / Novice
Detector Type: All-Purpose
Interchangeable Search Coil: Yes
Technology: VLF Multiple Frequency
Arm Rest: Fixed
Arm Rest: Strap Yes
Adjustable Shaft: Yes
Apps: No
GPS: No
Audio Tones: Yes
Depth Indication: Yes
Control Box Mount: Standard
Frequencies: Multi, 13 kHz
Number of Frequencies: 2
Target ID Scale: Single-tier Target ID Scale (0-99)
Target Id: Yes
Discrimination: Adjustable
Pinpoint Mode: Yes
Hi-Resolution Ground Balance: 175 points of ground balance resolution
Vibration Mode: No
Search Modes: 4 + Pinpoint
Search Mode Types: Zero, Standard, US Coins, Custom
Search Flashlight: No
Display Type: LCD
Backlit Display: Yes
Volume Control: Yes
Headphone Jack: 1/8"
Wireless Compatible: No
Interchangeable Headphones: Yes
Battery Type: Lithium-Ion
Battery Life: Approximately 15 hours, Varies with Frequency & Settings
Waterproof: Yes, submersible: Up to 16 feet (5 meters)
Rechargeable System: Yes
Warranty: 3 Year

See - frequently asked question

Can I pre-order the Vortex?

Hello, we have decided not to offer pre-orders on the Vortex. This means you will have the opportunity to get it faster by using the NOTIFY ME WHEN AVAILABLE OPTION (text or email) When the metal detector has become available, you will be notified. No need to be on a long waiting list... everyone has a chance at the just added stock when it arrives!

Hey guys does the Vortex come with the Z-Link wireless headphones?

Please Note: The Vortex VX5 is not wireless compatible. The VX7 & VX9 is wireless compatible, however they are currently purchased separately, or until we start running bundle options. The Garrett MS-3 Z-Link Wireless Headphone are located HERE
