Manufacturer SKU 1143060

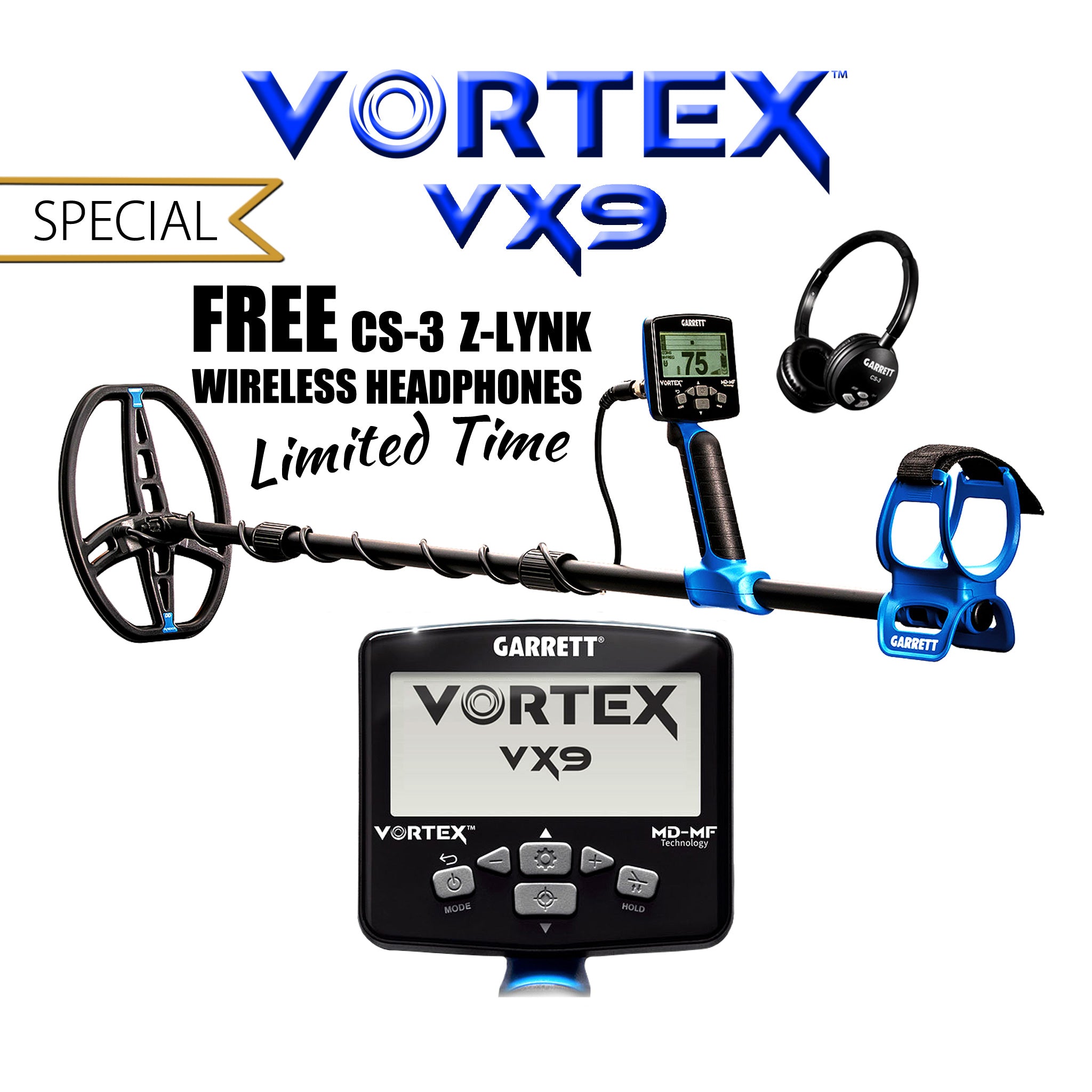

Garrett Vortex VX9 Metal Detector with 8.5" x 11'' Raider DD Search Coil
MORE IN STOCK SOON!
Garrett’s NEW Multi-Dimensional Multi-Frequency Technology, The Professional Vortex VX9 model with a full three-tiered MD-MF Target ID display (including two ferrous scales to help identify unwanted iron trash). Includes Multi-Salt and additional frequency choices. Additional Recovery Speed controls. FAST Mode for competition hunts and high-trash search areas. THIN COINS Mode for detecting fine, lower conductive coins such as hammered silver and thin gold coins.
Product Highlights:
- Excellent Detection Depth and Target ID accuracy
- Search Coil: Raider DD 8.5" x 11"
- Seven Search Modes + Pinpoint
- Target ID Scale(s) 3-tier Target ID Scales
- Construction: Waterproof up to 16 feet (5 meters)
- Special Features: Multi-Dimensional Multi-Frequency Technology
- Wireless Ready - Garrett MS-3 Z-Lynk headphones and other Z-Lynk accessories sold separately
- Weight: 3 lbs. (1.38 kg)
- Warranty: 3 Year Limited Warranty
*Note: lower frequencies generally offer improved detection on larger and more conductive targets (i.e. large silver coins). Higher frequencies generally offer improved detection on smaller and less conductive targets (i.e., hammered silver coins, gold nuggets).
Garrett Metal Detectors
Vortex VX9 Overview
FULL THREE-TIERED MD-MF TARGET ID SCALE
When operating in Multi-Frequency, the VX9's Target ID system displays a non-ferrous scale and two ferrous scales to help identify unwanted iron trash. Complex targets may indicate on both scales simultaneously.
WIRELESS READY
Built-in Z-Lynk wireless technology means you can search without cords attached to your detector. Garrett MS-3 Z-Lynk headphones and other Z-Lynk accessories sold separately.
THIN COINS MODE
Perfect setting made specifically for going after small thin coins - hammered silvers, tiny ancient gold coins, etc.
FAST MODE
Designed for use in trashy areas, where abundant trash can mask adjacent coins. Also ideal for use in competition hunts. Includes fast recovery speed and reduced iron volume.
3 LEVELS OF RECOVERY SPEED CONTROL
Choose from three recovery speeds. Increased recovery/reactivity speed helps you more clearly distinguish adjacent targets. A great benefit for competition hunts and for hunt sites filled with metallic trash that might otherwise mask good targets.
BEACH MODE AND MULTI-FREQUENCY SALT OPERATION
Utilize the power of MD-MF Technology and Multi-Salt operation. Smooth operation and deep Target ID accuracy along wet salt beaches and in the surf. Fully submersible to 16 feet.
SEVEN (7) FREQUENCY OPTIONS
Choose from five powerful single frequencies (5 kHz, 9 kHz, 13 kHz, 18 kHz, or 25 kHz) or search with one of two Vortex simultaneous Multi-Frequency options (the traditional Multi or Multi-Frequency Salt for saltwater beach use).
Features
- Seven Search Modes + Pinpoint: Zero, Standard, US Coins, Thin Coins, Beach, Custom, Fast
- MD-MF Target ID Scale: Three-tier Target Id Scales
- Iron Volume: allows you to decrease the volume of ferrous (iron) targets, while the volume of non-ferrous targets remains at normal level. Experienced treasure hunters often like hearing all targets, but will appreciate the option to decrease the volume of undesired items. Eight adjustment levels
- 5-Tone Audible Target ID
- Fast Target Recovery Speed: (2 settings)
- Wireless Ready: Built-in Z-Lynk wireless technology means you can search without cords attached to your detector. Garrett MS-3 Z-Lynk headphones and other Z-Lynk accessories sold separately
- Lightweight and Collapsible: Compacts to 24.75" (62.86 cm) and extends to 56.75" (144.14 cm). Weight: 3 lbs. (1.38 kg) with coil cover installed
- Hi-Resolution Ground Balance: 175 points of ground balance resolution, ranging from ferrous ground to saltwater
- Volume Control: For both the built-in speaker and headphones
- Eight Sensitivity/Depth Adjustments
- Iron Audio: Garrett's unique feature helps to correctly identify complex iron objects, such as bottlecaps and steel washers
- Frequency Shift: Use to reduce noise or electrical interference (EMI)
- Backlight: Illuminate your LCD screen to see target information at night
- Coil: 8.5" x 11" DD Raider
Factory Included Items
- Garrett Vortex VX9 metal detector
- 8.5" x 11" DD Raider Submersible Searchcoil with Cover
- USB Charging Cord
- Access to Online Training Videos
- Quick Start Guide - Full User Manual Available Online Only
- 3 Year Warranty
Specifications
Manufacturer: Garrett
Manufacturer SKU: 1143060
Product Type: Metal Detectors
Best for Beach, Coin, Relic, Advanced / Expert
Detector Type: All-Purpose
Interchangeable Search Coil: Yes
Technology: VLF Multiple Frequency
Arm Rest: Fixed
Arm Rest: Strap Yes
Adjustable Shaft: Yes
Apps: No
GPS: No
Audio Tones: Yes
Depth Indication: Yes
Control Box Mount: Standard
Frequencies: Multi, Multi-Salt, 5 kHz, 9 kHz, 13 kHz, 18 kHz, 25 kHz
Number of Frequencies: 7
Target ID Scale(s): 3-tier Target ID Scales
Target Id: Yes
Threshold: Adjustable
Discrimination: Adjustable
Pinpoint Mode: Yes
Hi-Resolution Ground Balance: 175 points of ground balance resolution
Vibration Mode: No
Search Modes: 7 + Pinpoint
Search Mode Types: Zero, Standard, US Coins, Thin Coins, Custom, Beach, Fast
Search Flashlight: No
Display Type: LCD
Backlit Display: Yes
Volume Control: Yes
Headphone Jack: 1/8"
Wireless Compatible: Yes
Interchangeable Headphones: Yes
Battery Type: Lithium-Ion
Battery Life: Approximately 15 hours, Varies with Frequency & Settings
Waterproof: Yes, submersible: Up to 16 feet (5 meters)
Rechargeable System: Yes
Warranty: 3 Year
See - frequently asked question
Can I pre-order the Vortex?
Hello, we have decided not to offer pre-orders on the Vortex. This means you will have the opportunity to get it faster by using the NOTIFY ME WHEN AVAILABLE OPTION (text or email) When the metal detector has become available, you will be notified. No need to be on a long waiting list... everyone has a chance at the just added stock when it arrives!
Hey guys does the Vortex come with the Z-Link wireless headphones?
No, they are currently purchased separately or until we start running bundle options. The Garrett MS-3 Z-Link Wireless Headphone are located HERE
