Manufacturer SKU 3820-0007

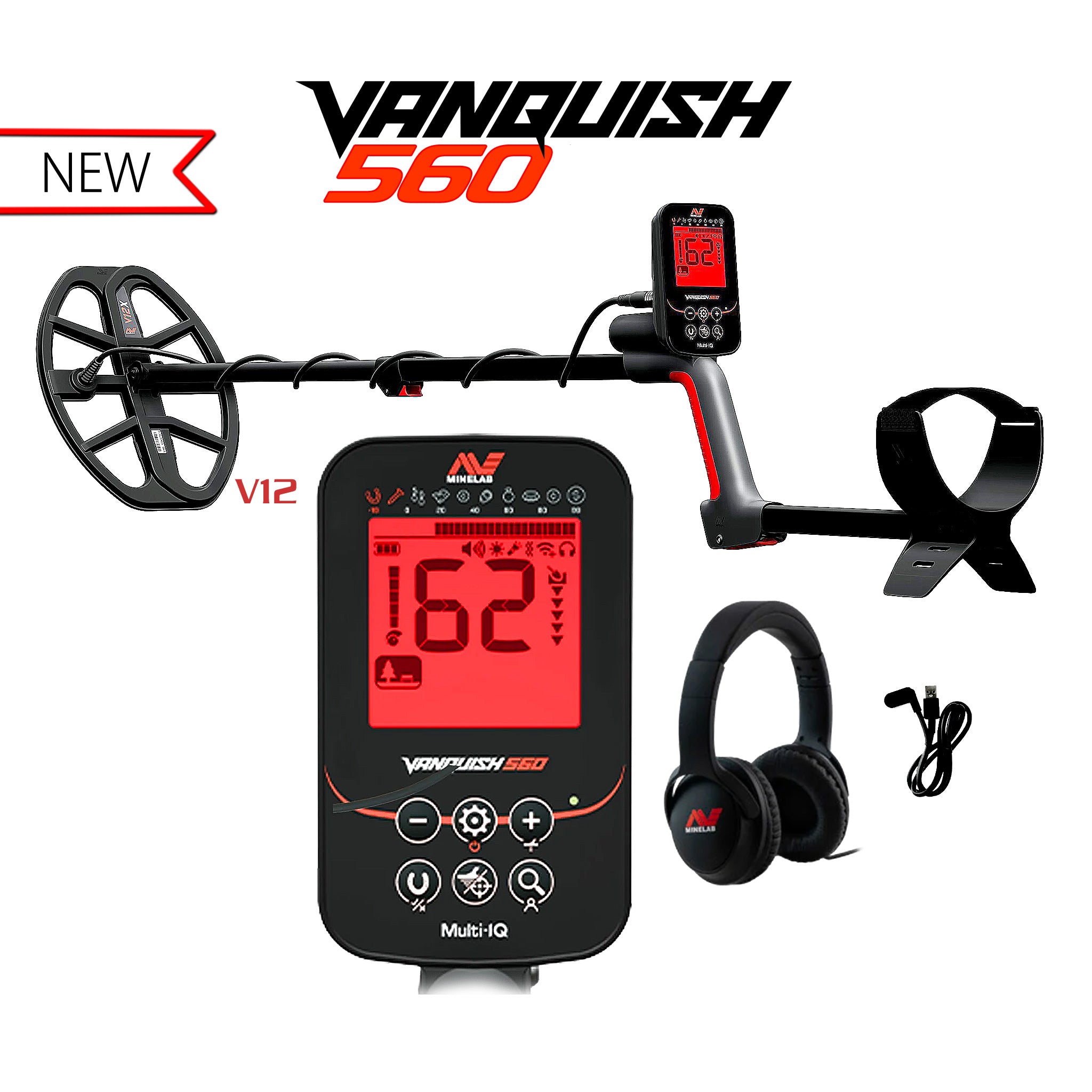

Minelab NEW Vanquish 560 Metal Detector With 12" x 9" V12 Coil
NEW Item: If you would like to be notified when the VANQUISH 560 becomes available, please use the 'Notify Me When Available' tab (above). You will be emailed or SMS texted when we add them to stock. For pre-orders without any payment commitment, please contact us to be added to our list.
The NEW VANQUISH 560 builds on the success of the first-generation VANQUISH, incorporating premium Minelab technology into a streamlined and lightweight design. It has been developed to meet the needs of beginners embarking on their metal detecting journey, while also providing the advanced features that experienced detectorists expect.
Product Highlights:
- Fully Waterproof (IP68): Submersible up to 16 ft(5 m), perfect for rivers, lakes, and shorelines.
- Multi-IQ® Technology: Detect all metals across all soil types simultaneously with accurate target ID.
- Bluetooth® LE Audio: Wired 3.5 mm (1/8") Headphones Bluetooth® LE Wireless Audio
- Extended Runtime: Up to 10 hours of continuous detecting.
- Lightweight Build: Weighs only 1.26 kg for comfort during long hunts.
- Enhanced Target Feedback: Advanced discrimination and target response for confident finds
- Iron Volume Control: 10 levels
- Iron Bias: 4 levels
- Target Tones: 5 tones
- Additional Features: Display Backlight + Key Backlight, Flashlight, and Vibration Mode
- Collapsible: Yes, the Snap-Lock system makes it easy to pack and go
- 3 Year Warranty
Minelab Intermediate Level
Vanquish 560 Overview

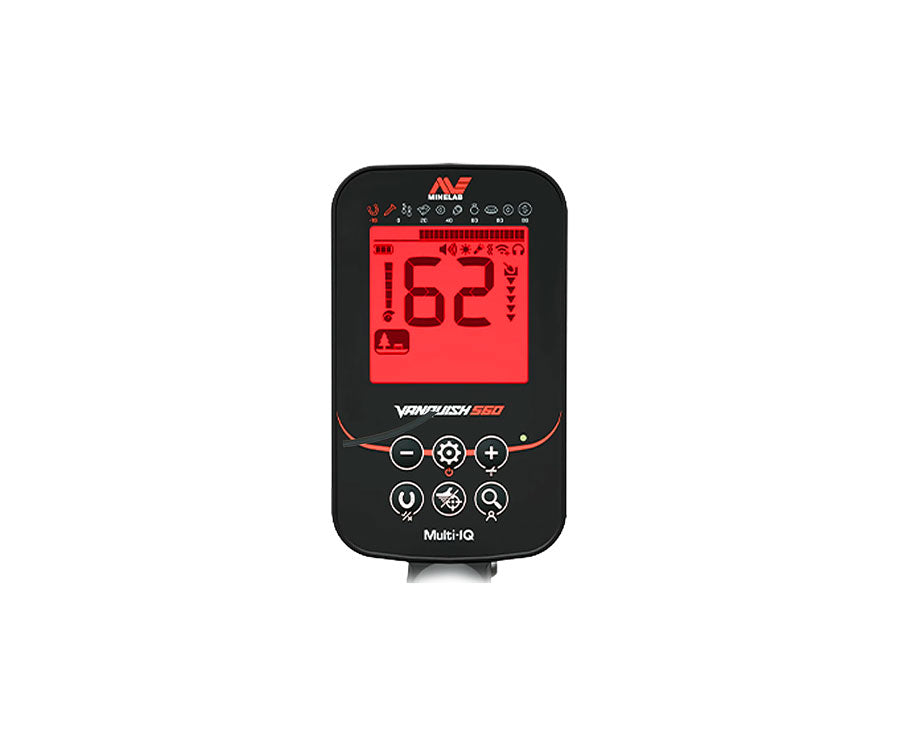

The VANQUISH® 560 leads the entry-level category with serious performance and more control across every detecting session. Minelab's proven Multi-IQ technology powers simultaneous multi-frequency detection for faster signal recognition, while features like handgrip vibration, a bright red LED display, adjustable audio tones, and low-latency Bluetooth® LE Audio help cut through the noise. Fully waterproof and fitted with the V12X coil for reliable accuracy wherever the hunt leads you.
Powerful Search Modes, ready to go at the touch of a button. VANQUISH’s Coin, Relic, Jewellery and All Metal modes are optimised to find exactly what you’re after, wherever you hunt.
Minelab Vanquish 560 Getting Started Guide Coming Soon
Minelab Vanquish 560 Manual Coming Soon
Features
- Multi-IQ: With Minelab’s proven Multi-IQ technology, you get the combined performance of multiple detectors in one, all working together at the same time. Just turn it on and start detecting.
- Waterproof: IP68-rated for full submersion up to 5 m (16 ft), allowing you to detect in oceans, rivers or heavy rain without hesitation.

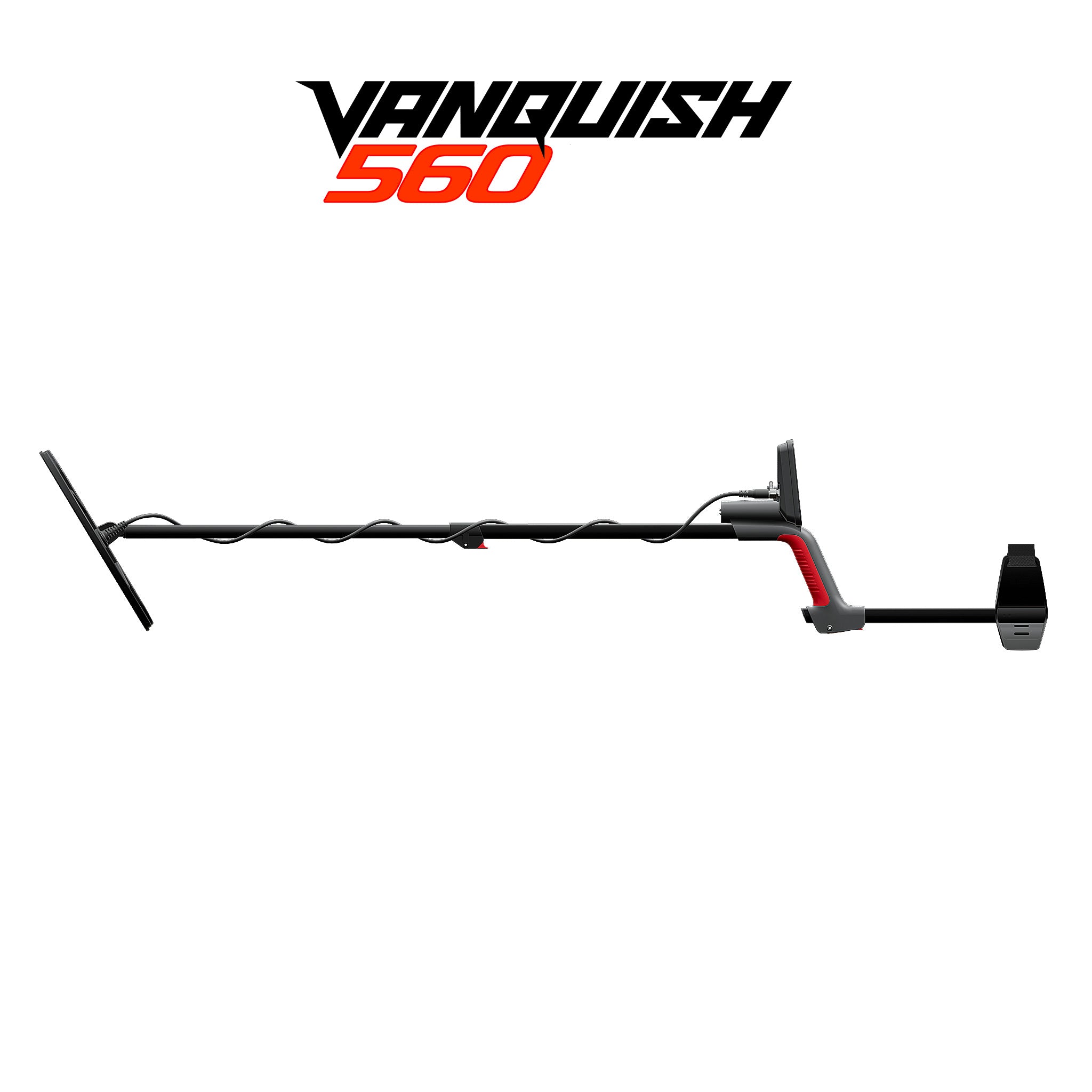

- Lighter Swing: Weighing just 1.26 kg (2.8 lbs), the sleek aluminium and fibreglass S-bend shaft is collapsible, ergonomic and built to travel.
- Battery: A built-in lithium-ion battery keeps you hunting longer, with up to 10 hours of continuous run time. No spares required.
- Coil: The V12X 12" Double-D coil comes included as standard.
- Discrimination Level: Quickly distinguish treasure from junk with 30 discrimination segments, 119 Target IDs and four levels of Iron Bias control.
- Compact and Ready: Lighter Swing: Weighing just 1.26 kg (2.8 lbs), the sleek aluminium and fibreglass S-bend shaft is collapsible, ergonomic and built to travel.
- Target Tones Control: 10 levels for both overall volume and ferrous tone response, plus five target tones provide clear audio control, making it easier to distinguish targets with greater precision.
- Pinpoint Mode: Included Pinpoint mode to help you zero in on targets with extreme precision.
Factory Items Included
- Vanquish 560 Metal Detector
- Waterproof V12X Coil and Skidplate
- Wired 3.5 mm (1/8") Headphones Bluetooth® LE Wireless Audi
- USB-C magnetic charging cable
- Getting Started Guide
Specifications
Manufacturer: Minelab
Minelab: Vanquish 560
SKU: 3820-0007
Best for: Intermediate - Beach, Coin, Relic, Jewelry
Detector Type: All-Purpose
Interchangeable Search Coil: Yes
Technology: Multi-IQ
Arm Rest: Adjustable
Arm Rest Strap: Yes
Adjustable Shaft: Yes
GPS: No
Audio Tones: Yes
Depth Indication: Yes
Programmable Target Id: Yes
Target Id: Yes
Pinpoint Mode: Yes
Vibration Mode: Yes
Search Modes: 3
Search Mode Types: All Metal, Beach, Park, and User Profile
Search Flashlight: Yes
Display Type: LCD
Backlit Display: Yes
Volume Control: Yes
Bluetooth Compatible: Yes
Interchangeable Headphones: Yes
Rechargeable System: Yes
Warranty: 3 Year
See - frequently asked question
Does this include the V8 8"x5" coil?
This metal detector has a V12 (12"x9") coil included. The V8 coil is not included.
Recommend for saltwater beach?
Yes it does very well in those conditions.
Does the red LED backlight change colors?
No just red.
Is a charger included for the batteries, and will normal AA batteries work with this as a backup if the rechargeable ones aren't charged?
Yes a 4 bank AA charger is included, and regular AA batteries will work perfectly fine as well.
