Minelab | X-Terra Elite Metal Detector | LMS Metal Detecting


Manufacturer SKU 3707-0002

Minelab X-Terra Elite Metal Detector With V12X DD Coil Powered By Multi-IQ™

The NEW X-TERRA ELITE is powered by Multi-IQ™, a true simultaneous multi frequency technology that delivers superior depth, target ID accuracy and high-end saltwater performance. Leveraging advanced features and the sleek and tough construction of the EQUINOX series, the X-TERRA ELITE is already making waves for its affordability and comprehensive feature set.

Product Highlights:

  • Special Features: Powered by Multi-IQ™
  • Search Modes: Park, Field, and Beach
  • Search Coil: V12X DD and Skidplate
  • Construction: Waterproof up to 16t / 5m
  • Coil Options: V12X™ (Included) | V8X™, V10X™, EQX06™, EQX11™, EQX15™ (Accessories)
  • Headphones: (not included) Compatible with the ML 85 & ML 105 Low Latency Wireless Headphones or any standard 1/8" Jack wired headphones
  • Weight: 1.3kg / 2.9 pounds
  • Warranty: 3 Year Limited Warranty
Minelab X-Terra Elite


Minelab | X-Terra Elite Metal Detector | LMS Metal Detecting



X-Terra Elite Overview

Stand out from the crowd and step-up your detecting game with the all-new X-TERRA ELITE treasure detector by Minelab. Out of the box, simply set your detector to match your terrain with Park, Field and Beach Search Modes and leave all the hard work up to the detector to start unearthing the treasure you seek. As your skills improve, the X-TERRA ELITE offers room to grow with Multi-IQ Technology, so you can set it to Multi, or 15 kHz at the press of a button and take control of any environment or situation that comes your way. Fully IP68 waterproof to 5 m (16 ft) and loaded with features like 5-audio modes, control pod flashlight, and handgrip vibration you’ll be detecting like a pro from the moment you start swinging.

X-Terra Elite Getting Started Guide - Download

X-Terra Elite Manual - Download

Minelab X-Terra Pro | LMS Metal Detecting


  • Search Modes: Park, Field, and Beach
  • Fully Waterproof: Waterproof to 5 M (16 FT) — IP6
  • Beach Performance: Saltwater Capability
  • Light and Compact: 1.3 kg (2.9 lb) and 63 cm (25 in)
  • Audio Control: 5 Audio Modes with configuration options
  • Choice Of Coils: V12X™ (Included) | V8X™, V10X™, EQX06™, EQX11™, EQX15™ (Accessories)
  • Lighting and Vibration: Control Pod Flashlight, Red Backlight Display, Backlit Keypad, and Handgrip Vibration
  • Loud and Clear Audio: In-Built Speaker (Included), Low Latency Wireless Headphones, Wired Headphones & Waterproof Headphones (Accessories Not Included)
  • Built To Last: Rugged construction and up to 3-year Warranty
Factory Items Included

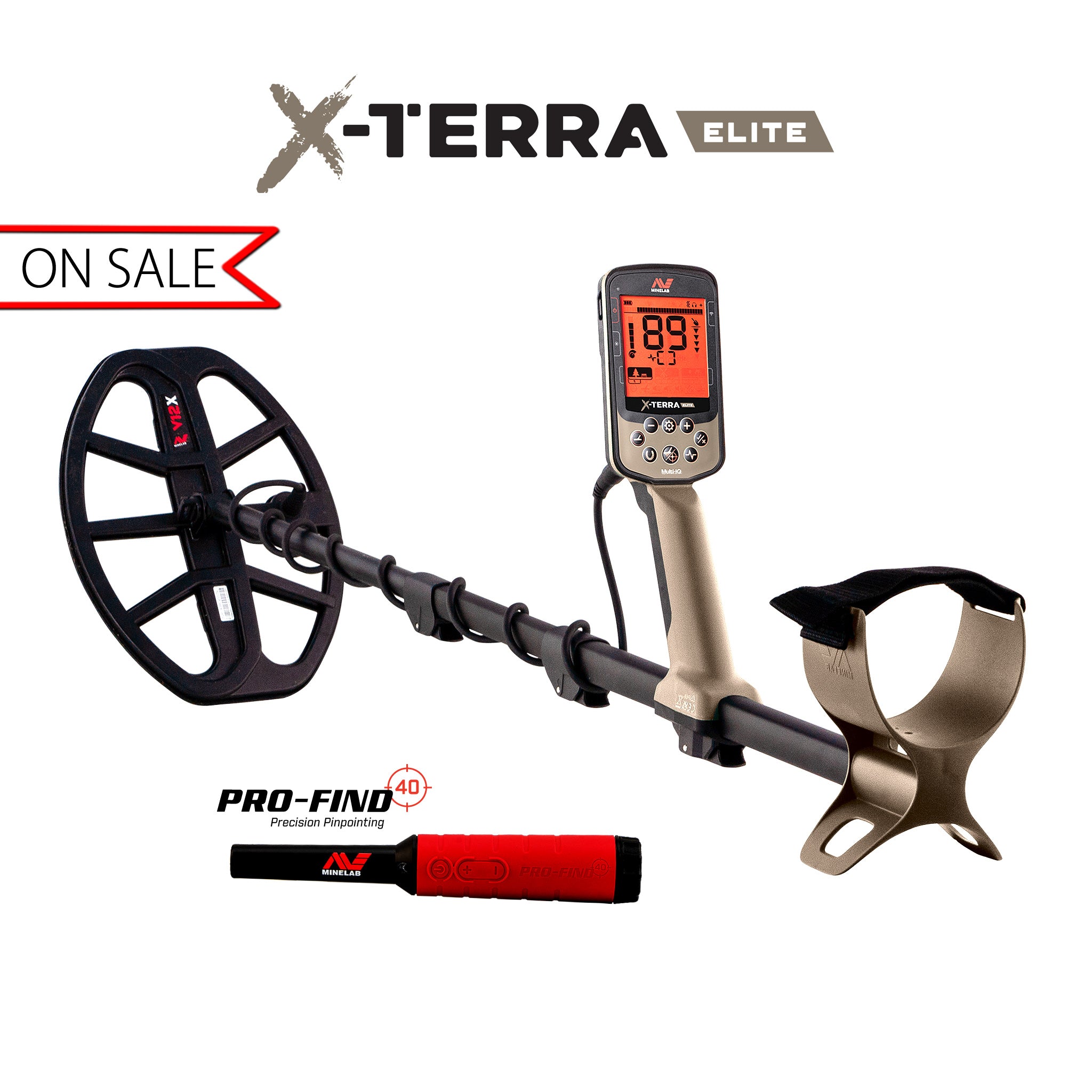

  • X-Terra Elite Metal Detector
  • V12X Double-D Coil (12 x 9) Elliptical
  • V12X Skidplate
  • USB Charging Cable with Magnetic Connector
  • Getting Started Guide
Minelab | LMS Metal Detecting


Manufacturer: Minelab
Manufacturer SKU: 3707-0002
Best for: Beginner, Saltwater Beach, Coin, Relic, Gold Jewelry
Detector Type: All-Purpose
Interchangeable Search Coil: Yes
Key Technologies: Multi-IQ™
Search Modes: Park, Field, Beach
All-Metal Shortcut: Yes
Custom Search Profiles: 6
Operating Frequencies (kHz): Park and Field Multi-IQ, 15 kHz | Beach Multi-IQ
Noise Cancel: Auto (19 Channels)
Ground Balance: Auto, Manual, Tracking
Sensitivity: 1 to 25
Target Volume: 0 to 25
Threshold Level: 0 to 25
Threshold Pitch: Fixed
Target Identification (TID): 119 segment notch discrimination: Ferrous: -19 to 0 I Non-ferrous: 1 to 99
Target Tones: l, 2, 5, All Tones (At), Depth (dP)
Tone Break: Ferrous (FE)
Tone Volume: Tone 1 adjustable - 0 to 25
Recovery Speed: 1 to 3
Depth Indicator: 5 Levels
Discrimination Segments: 30 segments (in increments of 4 Target ID's)
Pinpoint Mode: Yes
Wireless Audio: Yes
Length (approx.): Collapsed: 63 cm (25 in) Extended: 138 cm (54 in)
Weight (including batteries): 1.3 kg (2.9 lbs)

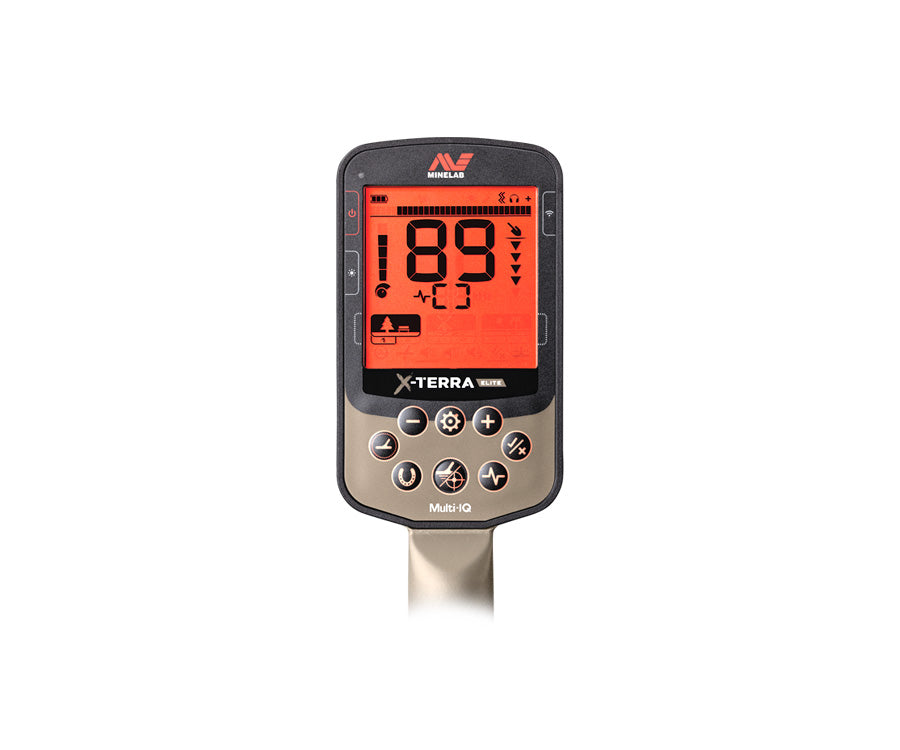

Display: Monochrome LCD
Display and Keypad Backlight (red): Off, High, Low
Display and Keypad Backlight (red): Off, High, Low
Flashlight: On, Off
Vibration (Master and Ferrous): On, Off
Audio Output: In-built loudspeaker, Wired 3.5 mm (1/8") headphones, Wireless headphones
Battery: 3.7V/5100 mAh Internal Lithium-lon battery
Waterproof: 5m (16 ft) IP68
Operating Temperature Range: -10 to +40 degrees Celsius (+14 to +104 Fahrenheit)
Storage Temperature Range: -20 to +70 degrees Celsius (-40 to +158 degrees Fahrenheit)
Warranty: 3 Yr.

See - frequently asked question

Will my ML 80 headphones work with this detector?

No if you’re looking to go wireless, the ML 85 or ML 105 Wireless Headphones are compatible with the X-Terra Elite.

Is X-TERRA ELITE a new version of the X-TERRA 305/505/705 series?

The X-Terra Elite is a completely new (2024) detector designed from the ground up. It leverages the robust compact form factor of the EQUINOX series as well as the rich history of the X-TERRA 305/505/705 switchable frequency detectors.

Will the Equinox coils work with this unit too?

Yes Equinox and X-Terra Pro coils are compatible. Thank you for your question.

Can Bluetooth headphones be used with an X-Terra Elite?

The X-TERRA ELITE uses a proprietary wireless audio that is not compatible with BLUETOOTH standards. The X-TERRA ELITE is compatible with ML85 or ML105 headphones, and the WM09 Wireless Module allows any wired headphones to be used with a wireless connection.
